JK 1 TON Swap - Frame Track Bar Bracket - FRONT
HomeStore

JK 1 TON Swap - Frame Track Bar Bracket - FRONT

JK 1 TON Swap - Frame Track Bar Bracket - FRONT

$35.00

Original: $99.99

-65%
JK 1 TON Swap - Frame Track Bar Bracket - FRONTā€”

$99.99

$35.00

The Story

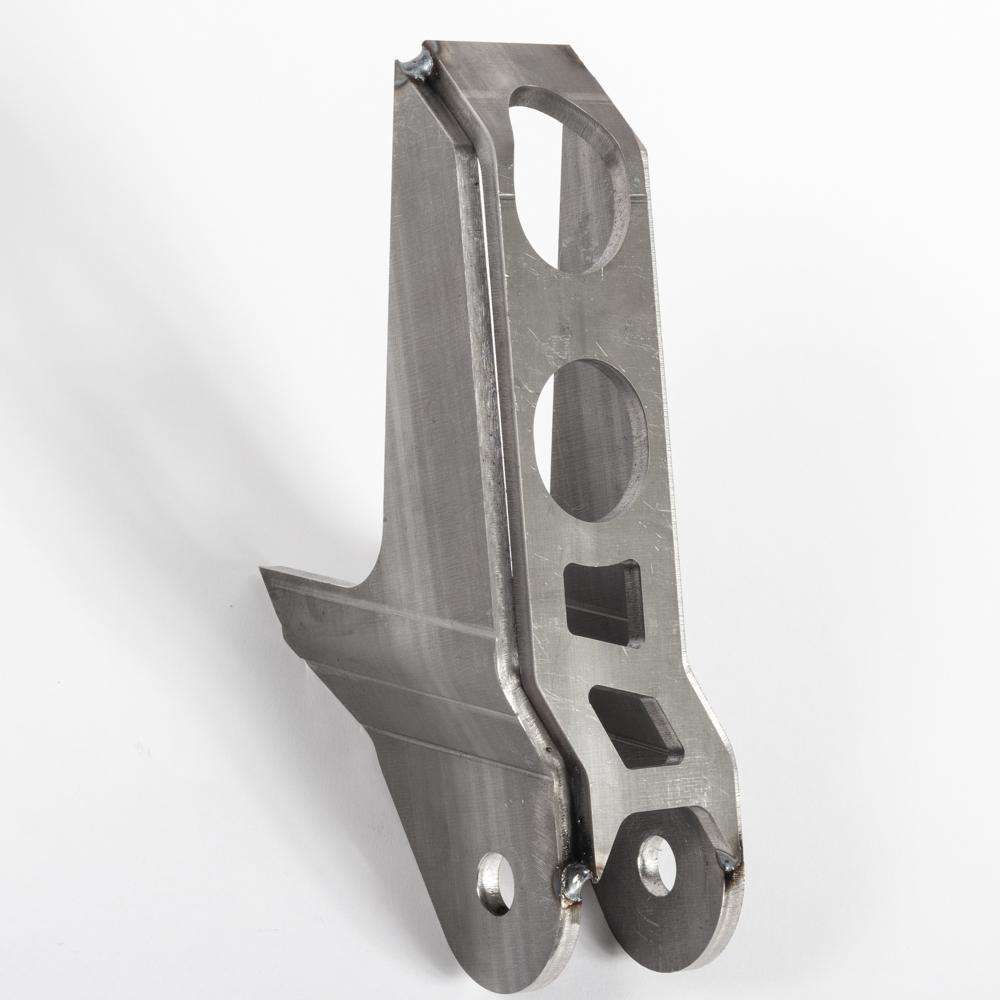

  • CNC laser cut and formed from 1/4" steel
  • Ships unwelded for ease of modification if necessary
  • Fits 1.6" wide joint with 9/16" bore

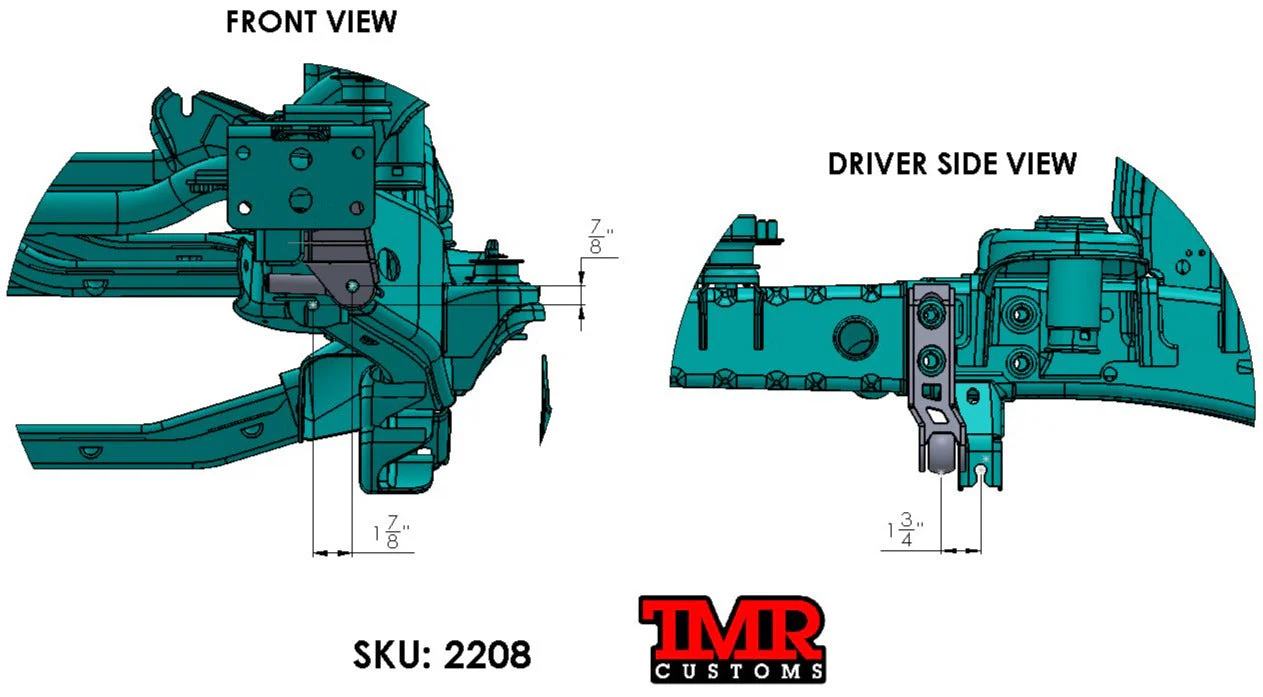

    Compared to the factory bracket - our bracket moves forward 1.75", moves out 1.75" (for longer bar), moves up .875" (for diff clearance).
    Ā
    We found this to be the sweet spot for the longest bar that will clear an anti rock arm, the d60 housing and the pitman arm!

    **Will require modification to your existing track bar or the fabrication of a new track bar! Will not work with stock sway bar!

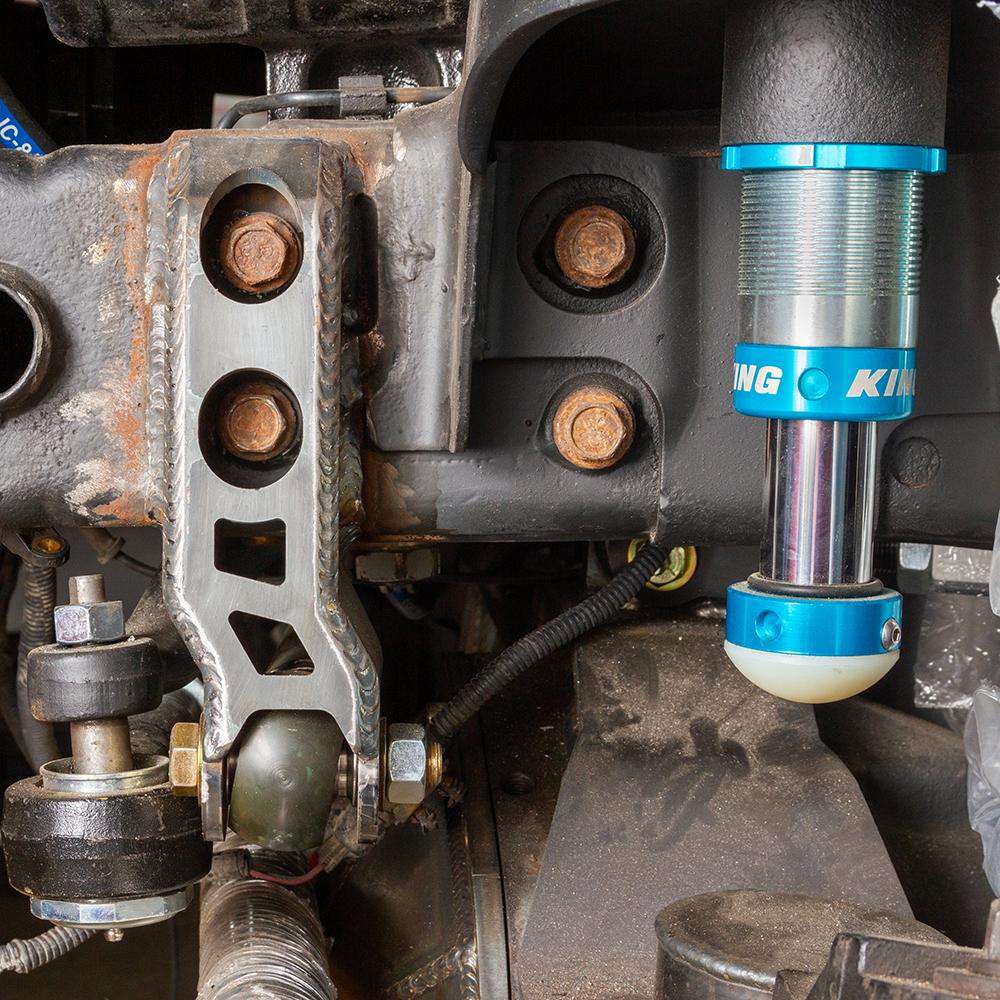

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

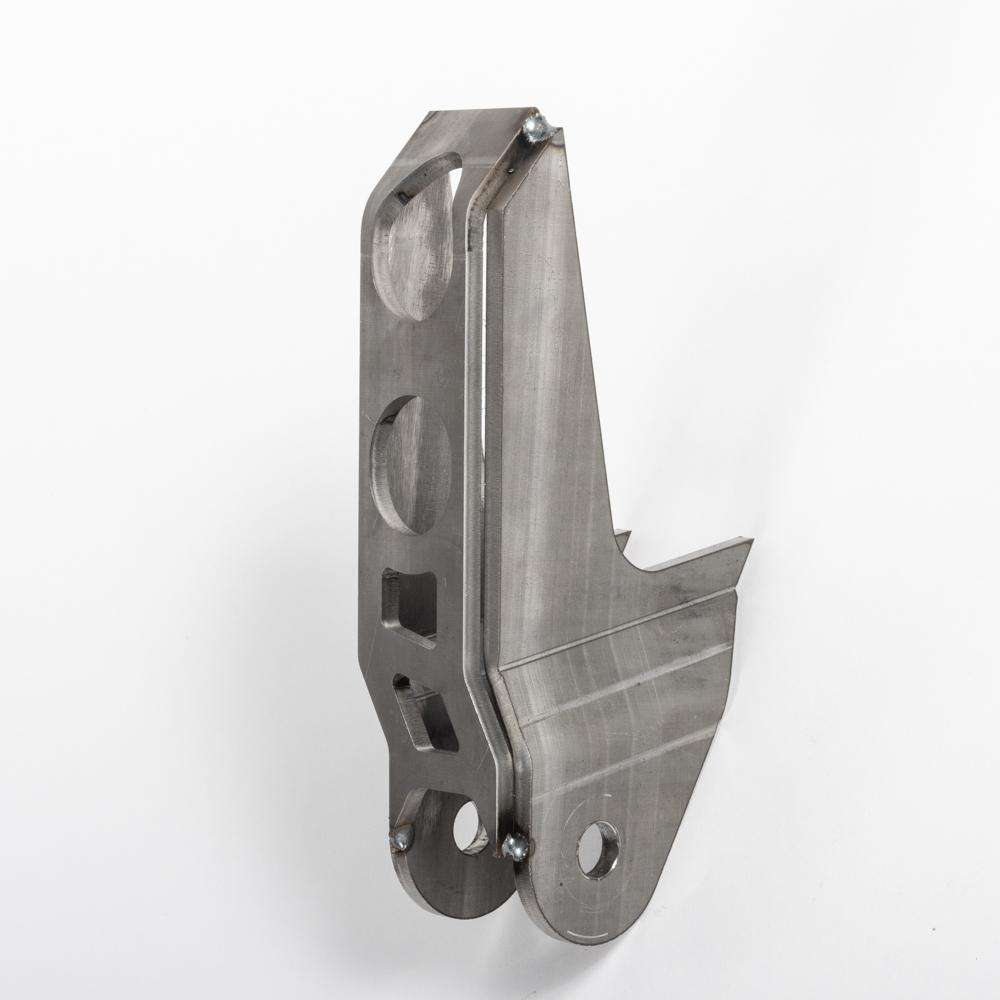

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

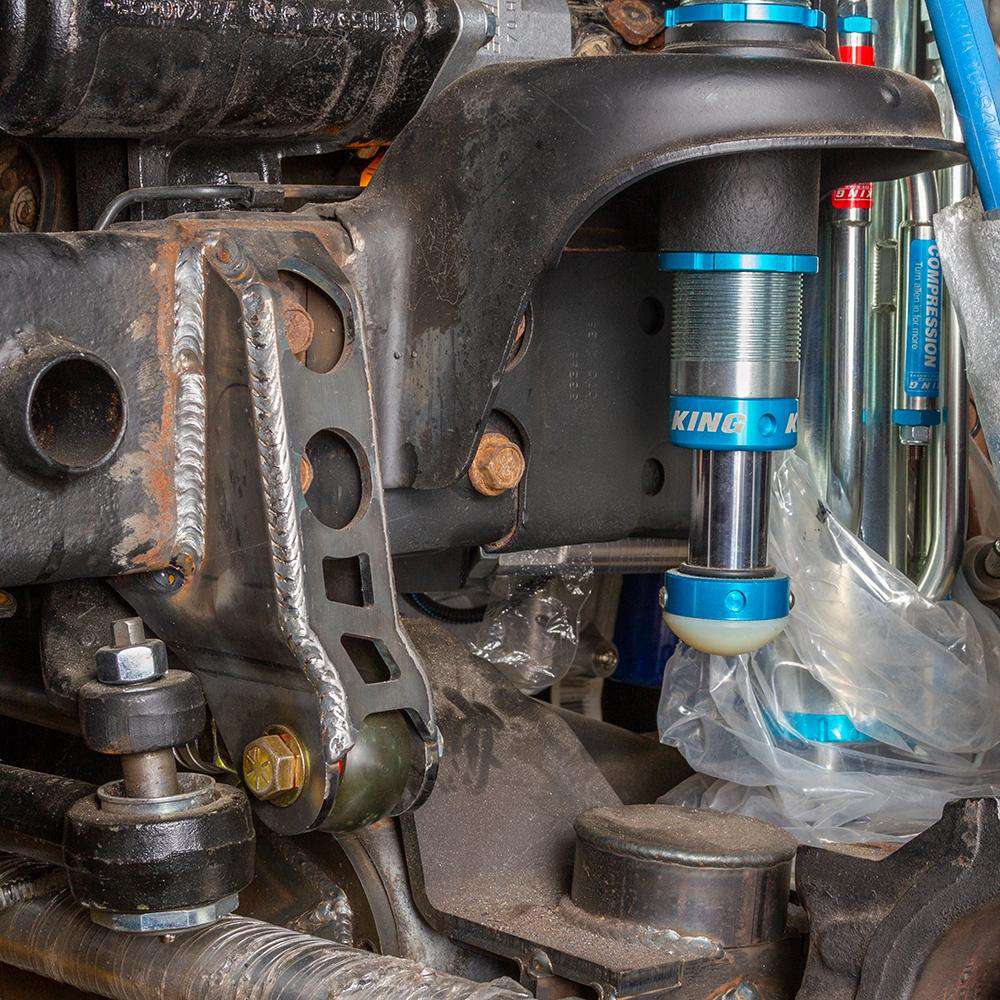

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

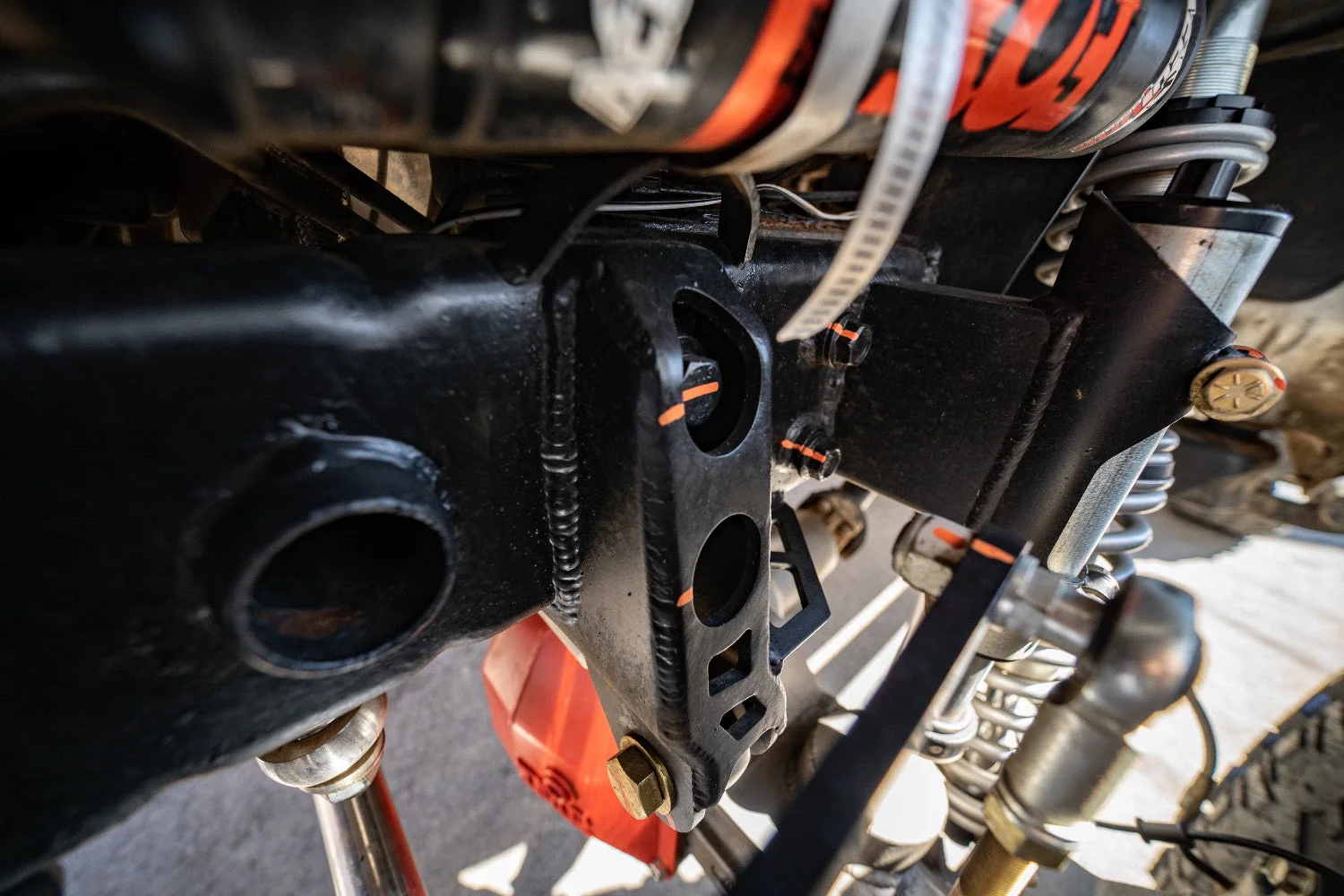

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

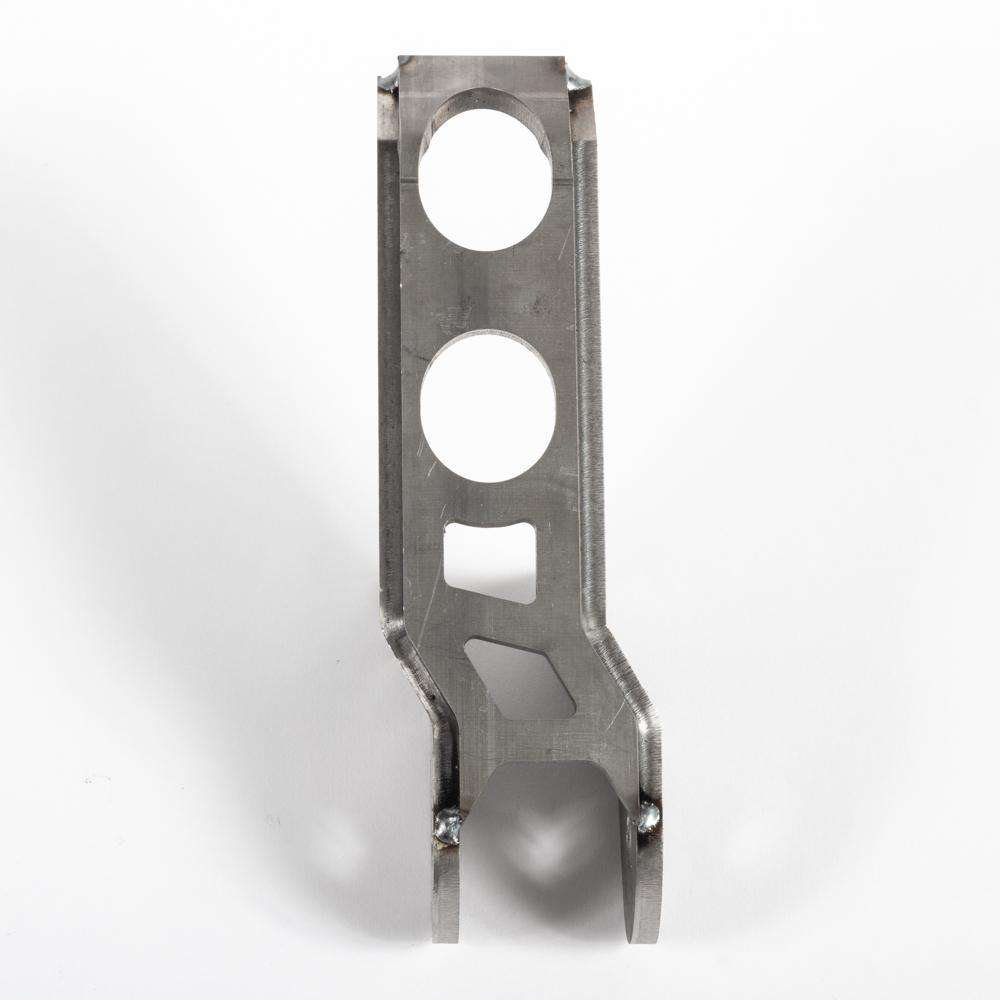

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

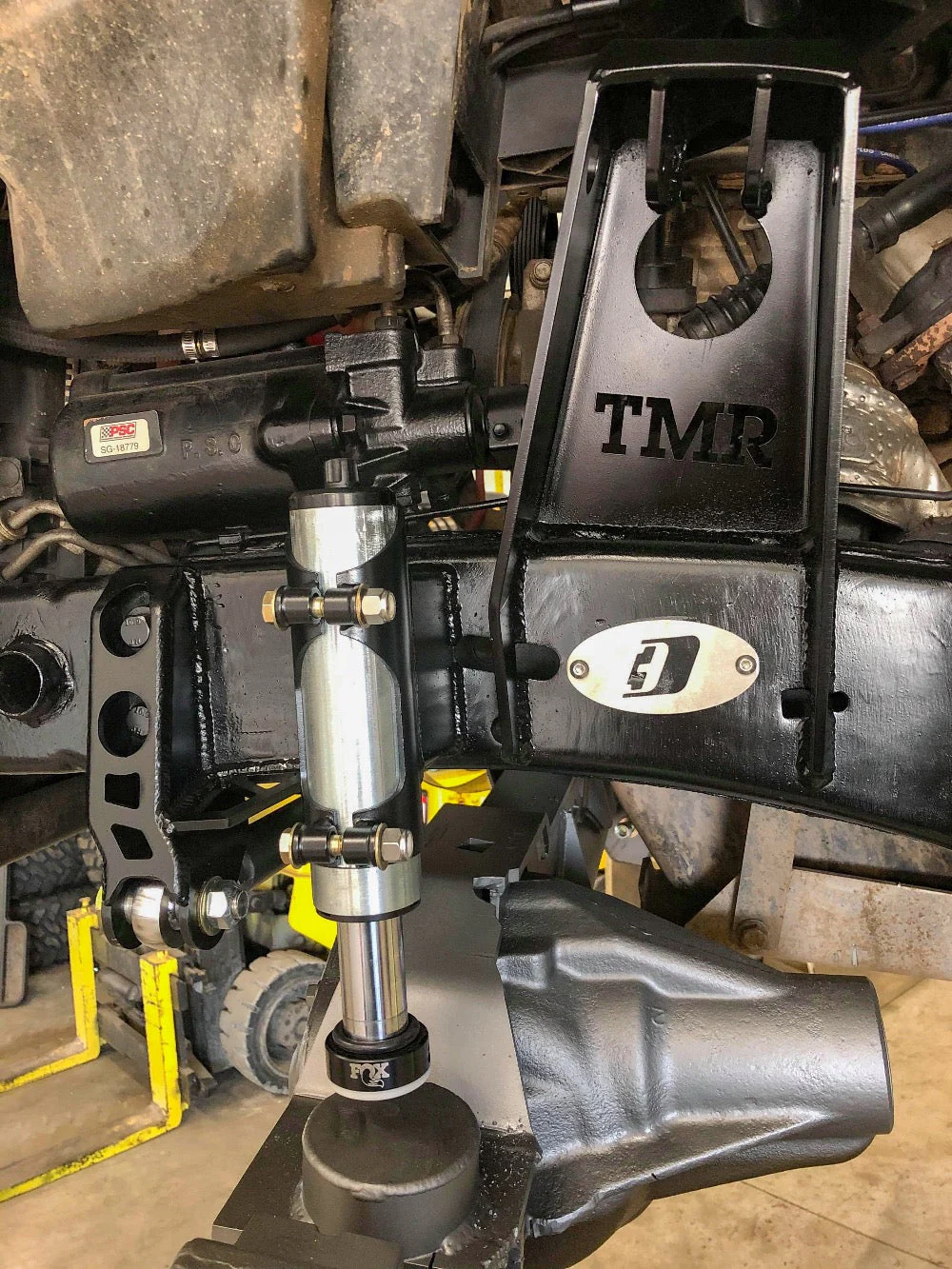

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

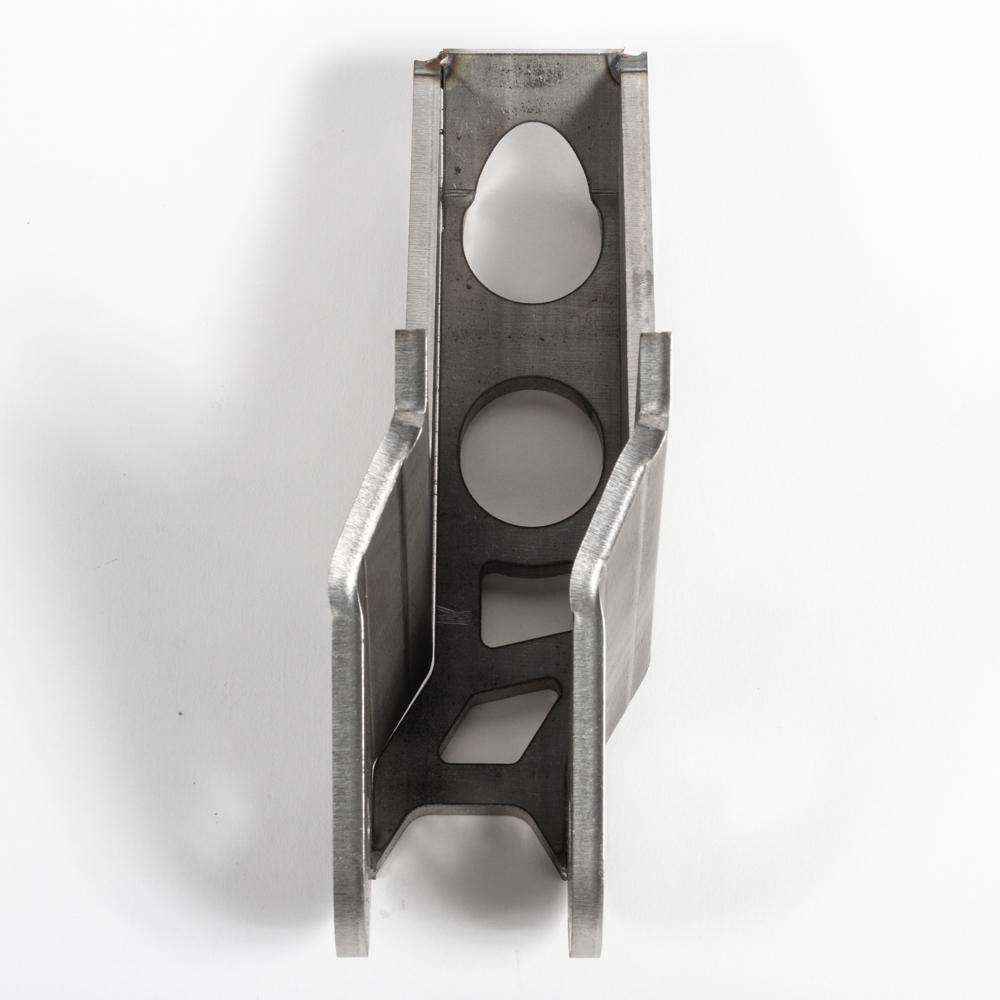

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

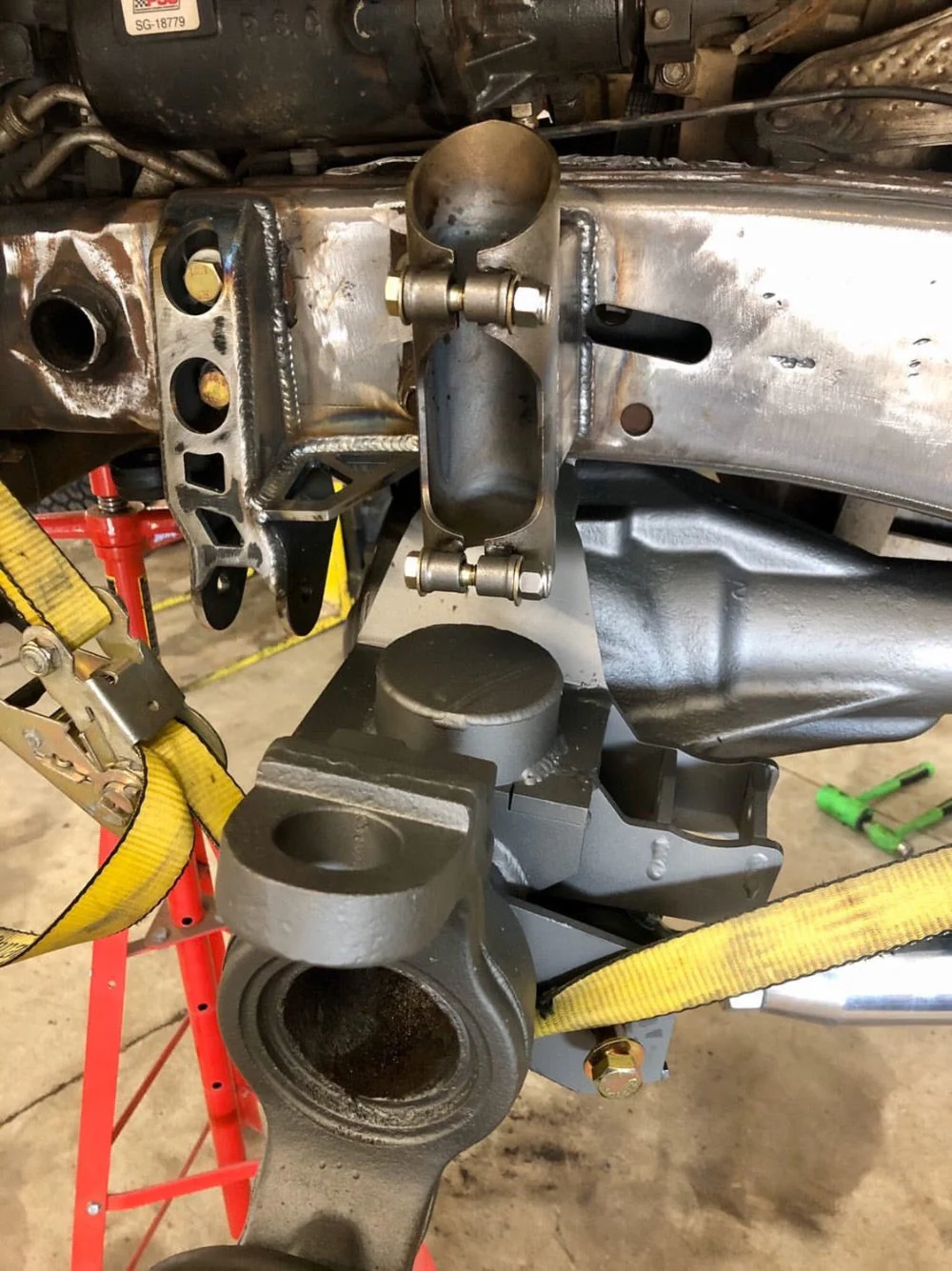

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

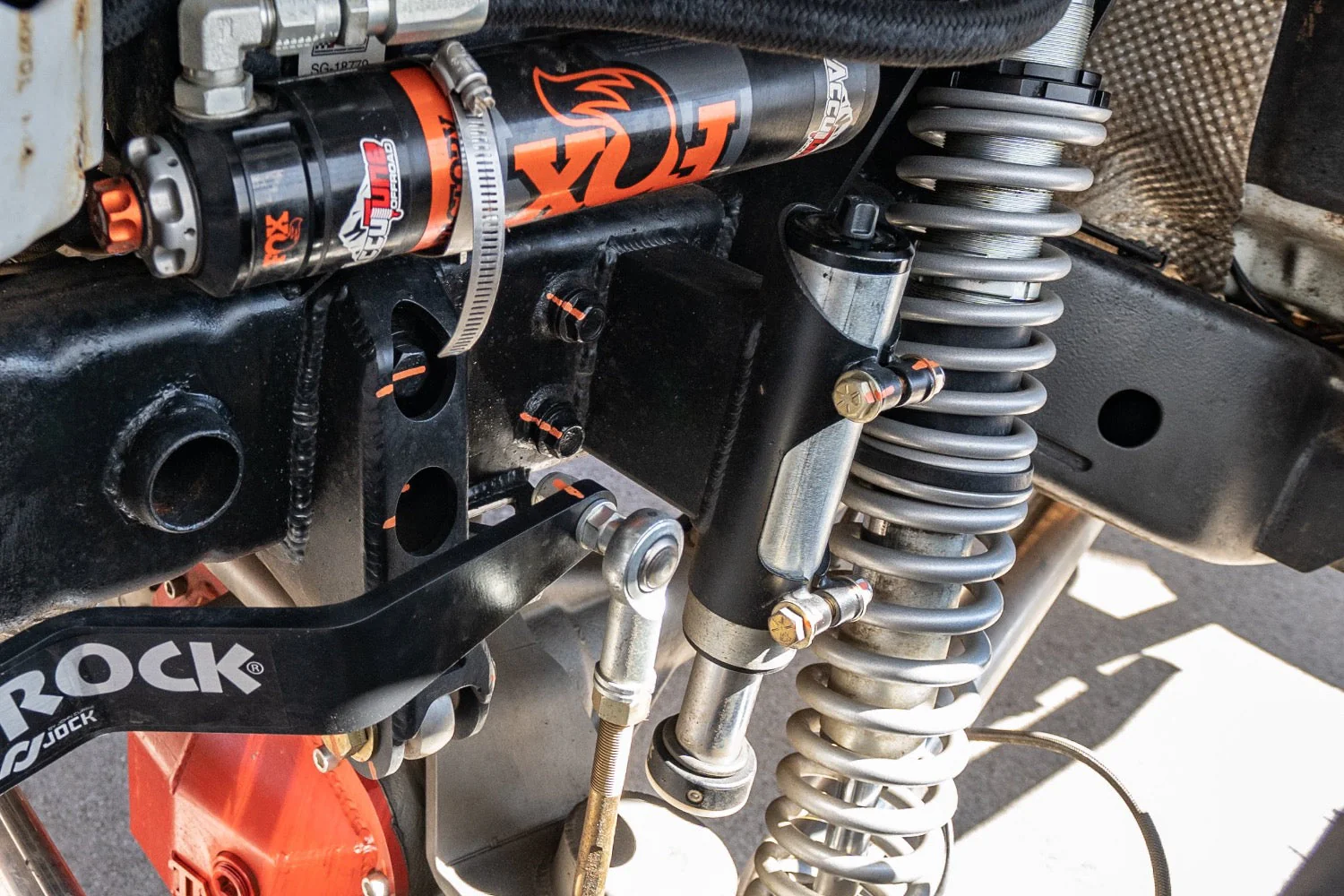

JK 1 TON Swap - Frame Track Bar Bracket - FRONT - Image 11
